B&W 5th Wheel to Gooseneck Pin Box — Lippert 1621/1621HD, 25K / 3,250 lb pin
B&W's entry into the pin box conversion category. An integrated SumoSpring and dual-axis cushioning absorb both up-and-down and front-to-back movement, with no air pressure to set and no break-in period.
25K lbs
Max Trailer Weight
3.3K lbs
Max Pin Weight
DIY or Pro?
Installation
4 versions
Pick Your Version
These are the same product in different sizes — the right one depends on your setup, not your truck. Match it before you order.
| Version | Part # | Capacity | Pin weight | Price | |
|---|---|---|---|---|---|
| Lippert 1621 / 1621HD — 3,250 lb pin weight | BW73RV | 25,000 lbs | 3,250 lbs | $1,899 | Check with dealer |
| Lippert 1621 / 1621HD — 4,500 lb pin weight | BW83RV | 25,000 lbs | 4,500 lbs | $1,999 | Check with dealer |
| Lippert Rhino — 3,250 lb pin weight | BW23RV | 25,000 lbs | 3,250 lbs | $1,899 | Check with dealer |
| Lippert Rhino — 4,500 lb pin weight | BW55RV | 25,000 lbs | 4,500 lbs | $1,999 | Check with dealer |
Requires
Gooseneck Ball
About This Product
B&W's 5th Wheel to Gooseneck Pin Box replaces your trailer's factory pin box with a gooseneck coupler, so the fifth wheel tows off a 2-5/16" ball instead of a fifth wheel hitch — and your truck bed stays open when you're not towing.
Cushioning comes from an integrated SumoSpring plus a dual-axis design that damps vertical and fore/aft movement. There are no air bags to inflate, no adjustments, and no break-in period. B&W states the adapter has been extensively tested and that using it should not void your trailer's frame warranty — a point worth confirming against your own trailer manufacturer's warranty language before you commit.
Pick by two things: your existing pin box's bolt pattern, and your pin weight. This version fits the Lippert 1621 and 1621HD (also Lippert 0719 and the Fabex PB 600 series) and is rated to 3,250 lb pin weight. B&W recommends the 3,250 lb model for a better ride up to about 3,500 lb of pin weight, and the 4,500 lb model above that. Lippert 1116 and 1716 pin boxes need the shim plate kit to account for the 12-1/2" mounting plate spacing.
Two 42" safety chains with hooks are included. Ram HD trucks with the factory prep package need the longer 51-1/2" chain kit.
Details
Specs & Details
| Part Number | BW73RV |
| Made in USA | Yes |
Compare Options
Related Products
Reese
Reese Goose Box 22.5K — Air-Ride Fifth-Wheel-to-Gooseneck
Weight Rating
22,500 lbs
Mount
Gooseneck Pinbox
Reese
Reese Goose Box (Gen 3) 20K — Air-Ride Fifth-Wheel-to-Gooseneck
The Gen 3 Goose Box (20K) swaps your trailer's pin box for an air-ride gooseneck coupler, freeing up the truck bed entirely. The air cushion smooths the ride and cuts chucking, making it the standout pin-box conversion if you'd rather pull a fiver off a gooseneck ball.
Weight Rating
20,000 lbs
Mount
Gooseneck Pinbox
B&W
B&W 5th Wheel to Gooseneck Pin Box — Lippert Rhino, 25K / 4,500 lb pin
Weight Rating
25,000 lbs
Mount
Gooseneck Pinbox
MSRP
$1,999
Curt

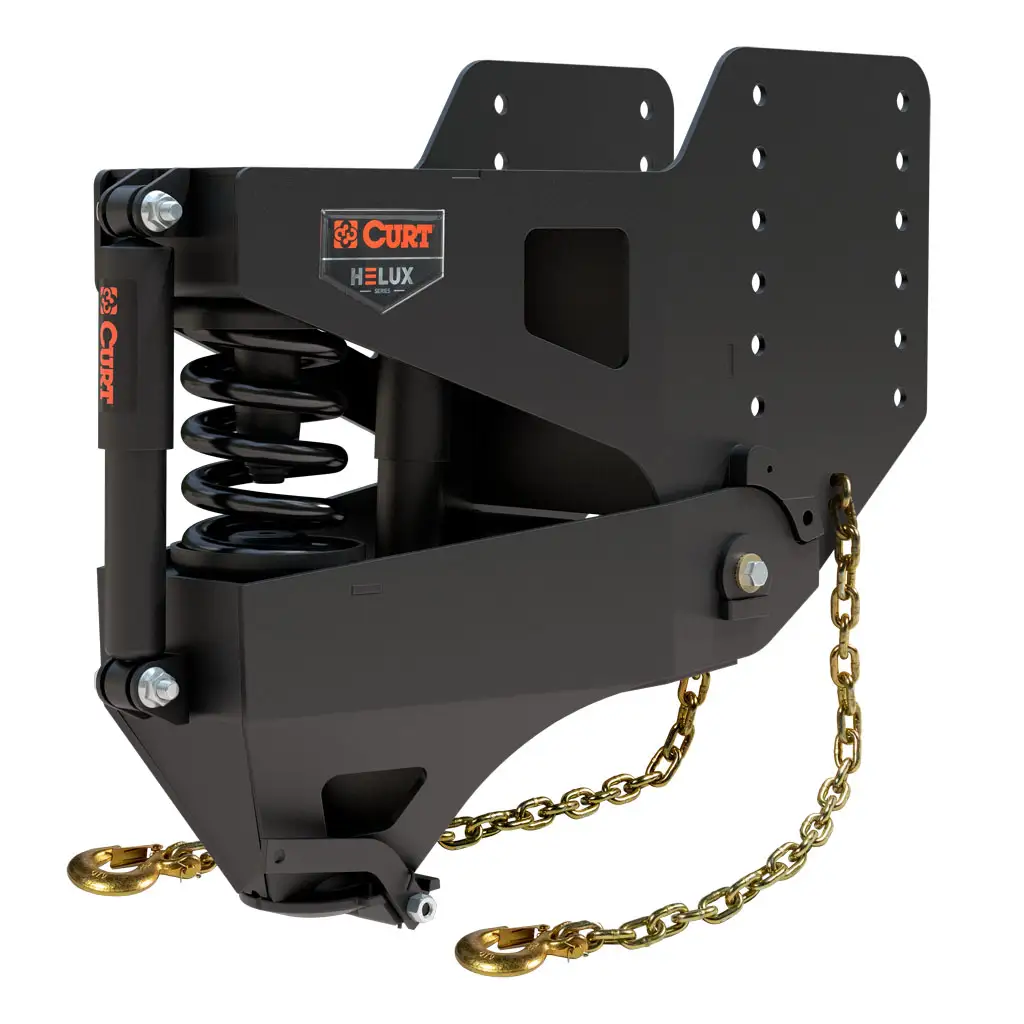

Curt Helux Coil-Spring Gooseneck Pin Box — 20K, 2,700 lb pin
Weight Rating
20,000 lbs
Mount
Gooseneck Pinbox
Got Questions?
Frequently Asked Questions
The B&W 5th Wheel to Gooseneck Pin Box — Lippert 1621/1621HD, 25K / 3,250 lb pin is rated for 25,000 lbs gross trailer weight (GTW) and 3,250 lbs vertical trailer weight (VTW — the pin weight your truck carries). Always verify your truck's tow rating before purchasing.
This hitch is considered DIY-friendly — most owners can install it with basic tools.
The 22.5K Goose Box replaces your fifth wheel's pin box so the trailer rides on a gooseneck ball with built-in air suspension. It's the cleanest way to convert to gooseneck and the air bag soaks up chucking far better than a rigid coupler, all with no head taking up bed space.
